Vaillant Boiler Flashing Radiator Symbol Explained

If your Vaillant boiler is flashing the radiator symbol, it means the heating has reached the set temperature. In this scenario, the burner switches off while the pump continues to circulate heat throughout the heating system. However, if the symbol keeps on flashing for extended periods of time, it usually is because of low water pressure or airlocks.

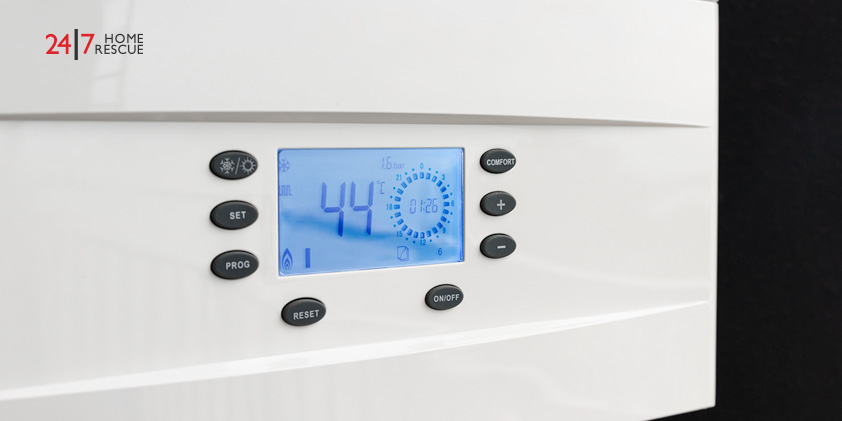

The Vaillant flashing radiator symbol is usually visible on the boiler’s main control panel, where it displays Vaillant error codes and symbols that indicate specific problems. The Flashing Radiator light on a Vaillant boiler is one such indicator. Let’s understand this issue, its probable causes, and how to fix it.

Key Takeaways

• The Vaillant Flashing Radiator Light indicates that the boiler has reached the designated temperature required for heating.
• If the water pressure is low, then this flashing radiator light indicates a fault.
• If the flashing radiator light keeps flashing, it’s caused by an airlock, low water pressure or a pump fault.
• Always contact a certified gas safe engineer for internal faults.

What Does the Vaillant Boiler Flashing Radiator Light Indicate?

The Vaillant boiler radiator symbol flashing light indicates that your boiler has reached the designated set temperature and entered the standby mode. This means that the boiler has stopped heating, but the pump continues to circulate water. This helps prevent any temperature changes and keeps the heating level consistent throughout the system.

Homeowners need to understand this signal, as it can help them determine whether their heating system is working properly or if there’s a significant issue that needs fixing.

What Causes the Vaillant Boiler Flashing Radiator Light

Normal Operating Conditions

If a Vaillant boiler shows a flashing radiator symbol, it means the pump is active while the boiler is hot and resting. What happens is your radiator symbol keeps flashing while the pump circulates to manage residual heat. Once the boiler has finished cooling down, you can expect the symbol to stop flashing.

Possible Fault

Potential faults may include inaccurate water pressure readings. An ideal water pressure in your Vaillant boiler is usually between 1 and 1.5 bars. Additionally, there can be problems with your boiler’s internal components, such as the pumps or sensors.

How to Fix the Flashing Radiator Symbol on your Vaillant Boiler

It is recommended to contact a Gas Safe engineer for an accurate fix. That said, fixing the flashing radiator symbol on a Vaillant boiler involves a series of steps to restore your boiler to flawless operation.

• For solving low-pressure issues, the system will be repressurised to bring the pressure gauge reading in the range of 1-1.5 bar.
• For solving circulation problems, check and bleed the radiators to remove any trapped air in the system
• You can also try resetting the boiler by following the manufacturer’s instructions

Here are the possible faults discussed in detail, along with how to resolve them.

Low Water Pressure Issue

For boilers, water pressure is directly linked to heating performance. If the boiler pressure is low, it can affect the heating efficiency. If the pressure is low, you can try get your boiler repressurised.

To check your boiler’s water pressure, simply check the pressure gauge. The pressure gauge is on the front panel of your boiler. An ideal pressure is between 1 and 1.5 bar. If your boiler’s pressure gauge is below 1 bar, you have low water pressure and will need to re-pressurise it.

Also, a reading above 1.5 bar may indicate potential issues, such as leaks, which must be investigated by a certified professional.

How to Repressurise Your Vaillant Boiler

To repressurise your Vaillant Boiler, follow the following steps:

• Find the filling loop, which is usually located beneath the boiler as a flexible hose.
• Turn off the boiler and make sure it has cooled down.
• Connect the filling loop and gently open the valve to allow water into the system.
• Watch the gauge and close it once it reaches 1 to 1.5 bar
• Lastly, remove the filling loop and switch the boiler back on.

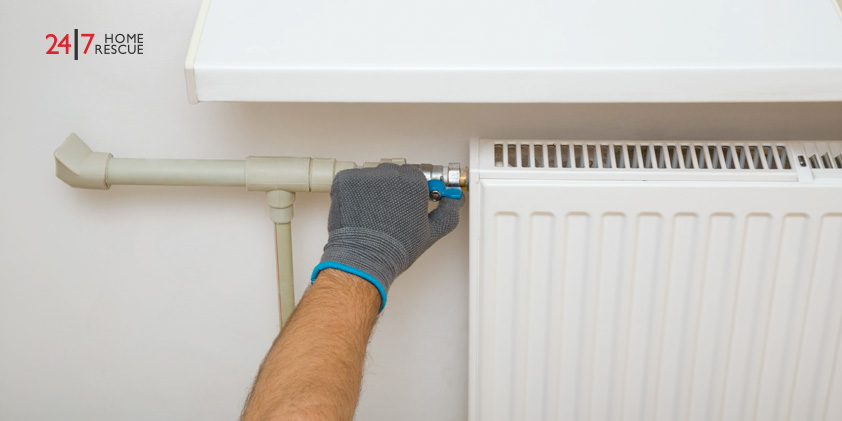

Improving Circulation and Solving Airlock Issues

Airlocks can interfere with the efficiency of your heating system. These airlocks also affect heat circulation in the radiators, reducing the efficiency of your heating system. It is important to address airlock issues. A good way to do this is to regularly bleed your radiators. This ensures that your heating system performs efficiently.

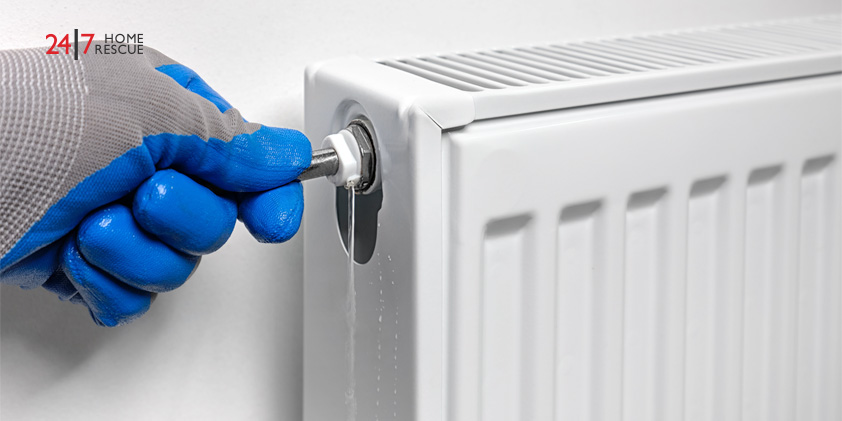

How to Bleed Your Boiler’s Radiators

Airlocks happen when air is trapped inside your radiators. Because of airlocks, cold spots form inside your boiler’s radiators, reducing heating performance. Bleeding the radiators is the solution to this problem. Follow these steps to bleed the radiators:

• Firstly, turn off the heating system to allow the system to cool down.
• Place a dry cloth beneath the radiator for any drips.
• Find the bleed valve, which is normally located in the top corner of the radiator.
• To open this valve, use the radiator key and turn it anticlockwise to open the bleed valve.
• Listen to a sound that resembles air escaping the radiators.
• As the water starts dribbling out, it means the air has been completely removed.
• Lastly, turn the radiators clockwise to close the radiator.

The Significance of Pumps in Heating Systems

A central heating system is a vital component of your heating system. It is responsible for circulating water effectively throughout the piping system and radiators. This circulation is important as without it, heated water can’t reach the radiators. This means that your home will not be heated effectively. The following tips will help ensure your central heating pump is working effectively:

• Regular boiler service is important. The pump of your boiler must be checked once every year for any signs of leakage.
• The noise levels from the pump can tell about its condition. A silent pump is not operating, and unusual noises may indicate mechanical failure or a blockage.
• Check the pressure gauge as proper water pressure is essential for your pumps working.
• If air is trapped in your pump, bleeding it might be needed to restore proper functioning.

Solving the Temperature Issues

When a flashing radiator symbol issue arises on your Vaillant boiler, homeowners often link it with the temperature control and cycling of your heating system. Getting the correct thermostat settings can fix this. Also, having an in-depth knowledge of annual heating demand is essential.

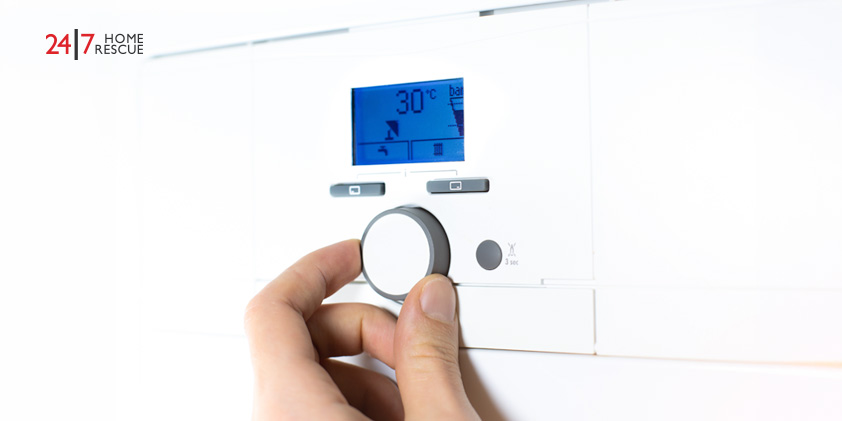

Adjusting the Thermostat

The temperature set point is the temperature at which your Vaillant boiler aims to maintain the central heating system. If the temperature set point is not configured correctly, the boiler can undergo unnecessary heat cycling, which involves turning on and off more than necessary.

• Locate the thermostat dial on your boiler’s digital panel.
• Set the temperature according to the desired level and season. This temperature is mostly between 18°C and 21°C.
• Assess your boiler’s working now. If cycling continues, consider seeking professional help from a certified engineer.

When to Call a Gas Safe Engineer

You should contact a Gas Safe Engineer if the flashing radiator symbol on your Vaillant boiler shows up for extended periods of time. Moreover, if you notice the flashing radiator symbol and your heating system is not quite up to the mark, it is recommended to seek professional assistance.

Conclusion

The flashing radiator symbol on your Vaillant boiler doesn’t necessarily indicate a problem. However, low boiler pressure can’t indicate faults linked with water circulation. There is also the issue of airlocks, which can be resolved by bleeding the radiators. In any case, it is better to seek professional help and get this issue resolved from a qualified Gas Safe engineer.

Getting the services of a certified engineer is even more affordable with a boiler cover. During an unexpected boiler breakdown, a boiler and heating cover can help you avoid costly repairs and make your boiler work perfectly once again.
