S Plan vs Y Plan Heating Systems: Benefits, Drawbacks, and Comparison

An S Plan heating system is a wet central heating system using two motorised valves to separately control hot water flow to radiators and your hot water cylinder. It’s the UK’s most popular heating system because it’s simple, efficient, and allows independent control of heating and hot water making it cost-effective to operate.

Understanding how S Plan systems work and why they dominate UK homes is essential for homeowners and landlords. The S Plan heating system is the UK’s most popular choice for its simplicity and efficiency. This article explains how it works, its key advantages, and how it differs from Y Plan systems. Whether you’re installing or troubleshooting, understanding these differences helps you make better heating decisions.

What Is an S Plan Heating System?

If you have a central heating system in your home, chances are it’s an S plan heating system. This type of system is built with two-port motorised valves and is very common in UK homes, consisting of a few key components: a boiler, a hot water cylinder, and a series of pipes and radiators. Here’s a quick overview of how an S plan heating system works:

S Plan Heating System Pipe Layout

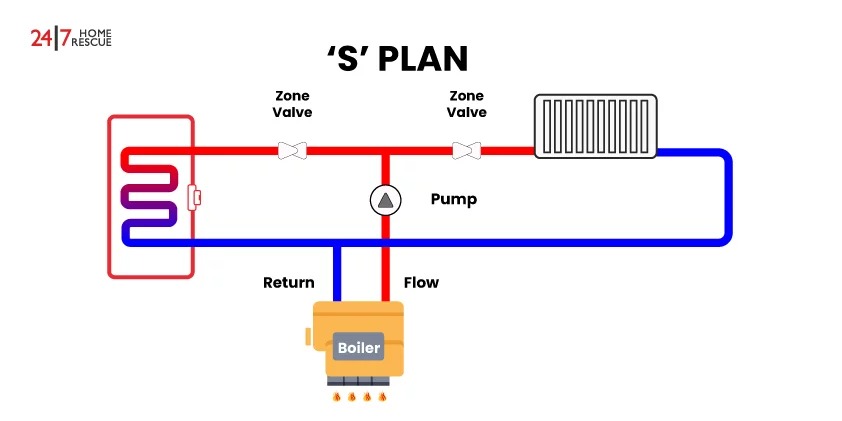

A typical S Plan pipe layout sometimes called an S Plan plumbing diagram or S Plan pipe diagram has separate branches for central heating and hot water. One valve controls flow to the radiators, while the other controls flow to the hot water cylinder coil.

S Plan Wiring Diagram

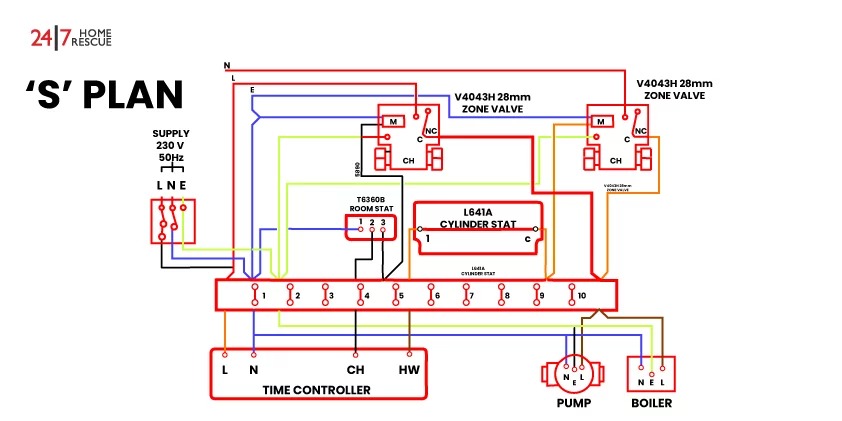

In a real S Plan wiring arrangement, the programmer, room thermostat and cylinder thermostat signal the relevant motorised valve. The valve’s auxiliary switch can then signal the boiler and pump. The exact electrical connections vary by equipment and must follow manufacturer instructions.

Benefits of S Plan Heating Systems

You get real independent control heat the water without the radiators coming on, or the other way round. Because each circuit already has its own valve, adding more zones later (an S Plan Plus setup) is a fairly small job rather than a full redesign.

If one valve does fail, the other circuit will often keep running, since heating and hot water aren’t sharing a single point of control. If a motorised valve develops a fault, professional boiler repair may be needed to identify and fix the issue. And with the right controls in place, you can run different schedules or temperatures throughout the day, which tends to bring the running costs down.

Drawbacks of S Plan Heating Systems

There’s not much to hold against it. It does need slightly more hardware, two valves and the pipework to match so installation. That’s really the extent of it.

Y Plan Heating System

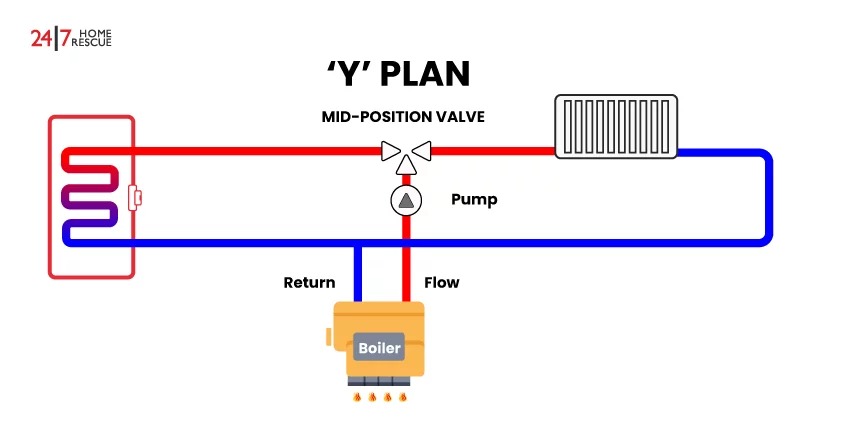

A Y Plan system takes a different approach: one three-port valve handles both heating and hot water, working alongside a room thermostat, a cylinder thermostat and a programmer.

That single valve directs hot water to the radiators, the cylinder coil, or both, depending on what the controls are calling for. The pipe layout ends up simpler than an S Plan’s, since everything routes through one valve instead of two.

Benefits of Y Plan Heating Systems

Fewer parts means a simpler install one valve instead of two, which also tends to bring the upfront cost down. It runs on a timer, so your home stays warm through the colder months without wasting fuel. And because there’s less kit involved, it can suit smaller properties or tighter plant spaces better than an S Plan would.

Drawbacks of Y Plan Heating Systems

The trade-off is that one valve now has to do the work of two. If it fails, you can lose both heating and hot water at once, not just one or the other. Over time these valves can also stick or develop motor faults, and because the wiring is a bit more involved, it’s worth having a qualified engineer handle installation and servicing rather than attempting it yourself. Regular boiler service can also help identify potential issues with the boiler and its controls before they develop into larger faults.

S Plan vs Y Plan: How They Compare

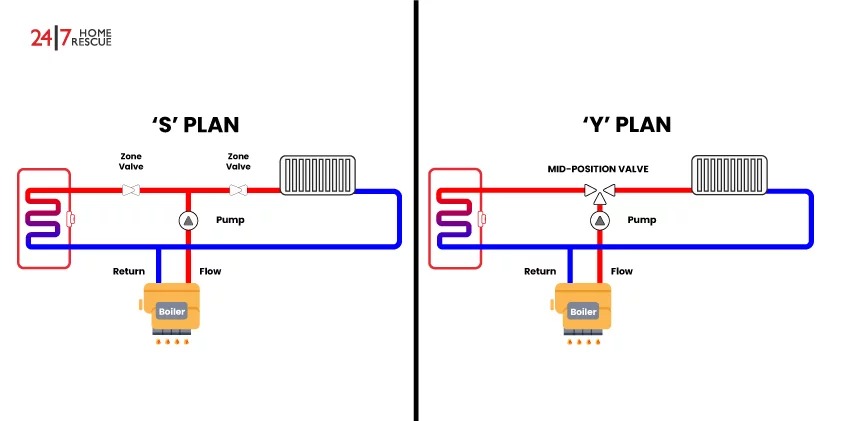

If you’re trying to decide between a central heating Y Plan and an S Plan, it really comes down to one thing: how many valves are doing the work. S Plan uses two two-port valves; Y Plan uses a single three-port valve.

Whatever type of system you have, boiler cover is an option for homeowners who want additional support if their boiler develops a fault, depending on the level of cover selected.

S Plan Plus Heating System

A standard S Plan runs on two valves one for heating, one for hot water. S Plan Plus builds on that by adding further two-port valves and controls so you can split the heating into more zones, say a separate circuit for upstairs and downstairs. The pipe layout follows the same logic as a standard S Plan; it just gains an extra valve and pipe run for each additional zone you add.

Conclusion

An S Plan uses separate motorised valves to control the heated water going to your radiators and hot water cylinder, which is what gives it that independent control. A standard S Plan keeps heating and hot water on their own circuits, while S Plan Plus takes that further with additional zones.

If a valve fault or wiring issue has knocked out your heating or hot water, our boiler repair engineers work on both S Plan and Y Plan systems, including call-outs in London, Manchester, Birmingham and all over mainland England, Scotland and Wales. And if it’s just routine upkeep you’re after, booking a boiler service keeps the valves and controls running the way they should.
